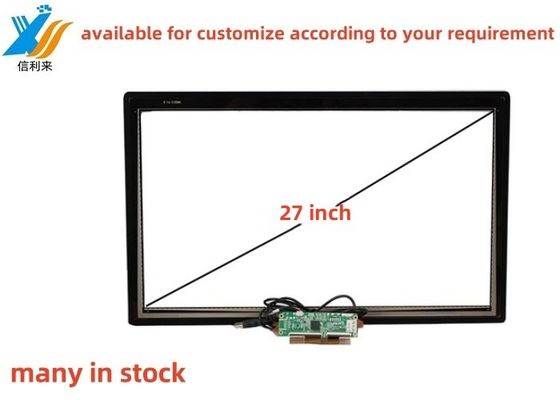

27 inch Multi touch projected capacitive (PCAP) touch screen Panel Customizable Touch Monitor waterproof oilproof pen touoch Anti-UV Lcd display tablet pc
Product Details:
| Place of Origin: | China |
| Brand Name: | Xinlilai |
| Model Number: | 815270 |
| Document: | 815270 27-inch anti-finger...en.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Packaging Details: | foam card slot+carton |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50000 per month |
|
Detail Information |
|||
| Product Name: | Touch Screen Panel | Model Number: | 815270 |
|---|---|---|---|
| Type: | Capacitive | Structure: | G+G |
| Size: | 27 Inch | Connection Type: | COB |
| Driver IC: | ILITEK2510 | Interface: | USB/IIC |
| Click Times: | 10 Million | Multi Touch: | Up To 10 Touch Points |
| Cover Lens OD: | 646*384mm±0.25 | Cover Lens VA: | 599*339mm±0.25 |
| Sensor: | 616*359mm±0.3 | R-angle: | 4*R15 |
| Color: | Black In Backside, AF Treatment In Face | Working Voltage: | USB 5V |
| Resolution Ratio: | 1980*1280 | View Area Ratio: | 16:9 |
| Operating Temperature: | -10℃~60℃ | Operating Humidity: | ≤85%RH |
| Transmittance: | ≥85% | Surface Hardness: | ＞6H |
| Application: | Industrial Commercial Education Medical | ||
| Highlight: | Industrial Capacitive Touch Screen Panel,Customizable Sizes Capacitive Touch Screen Panel |
||
Product Description
Product Description:
This 27 Inch touch screen panel is crafted with top-of-the-line materials to ensure durability and reliability. With its G+G organization and COB connection type, this touch screen panel delivers seamless connectivity and efficient performance.

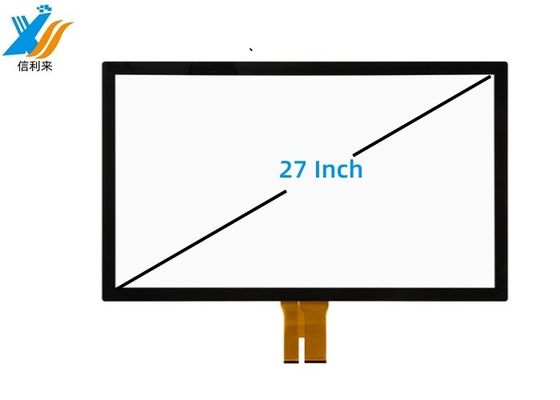

The size of this Multi touch screen panel is 27 Inch, including that the Lens OD is 646*384mm±0.25, Lens VA is 599*339mm±0.3, Sensor area is 616*359mm±0.3, offering a wide active area for using. The R-angles are 4*R15, which can also be customized according to customers' different needs.
The Xinlilai 27 Inch Multi touch screen panel boasts many impressive features, including a light transmission rate of over 85%, the response time of less than 3ms, the viewing ratio is 16:9, and the surface hardness of over 6H, making it one of the clearest and most vibrant touch-enabled display panels on the market.
Besides, the color of the touch screen panel is pringting black in backside, and the surface uses AF treatment technology, making it ideal choice for outdoor as well as indoor use.
Features:
Product Name: Touch Screen Panel

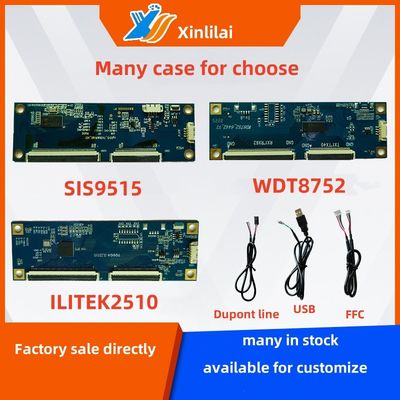

Driver Ic: EETI, ILITEK, LG, Goodix, FT, WDT, SIS, NVIDIA, GT, Silead, SIS and so on for choise
Response time: <3(ms)
Capacitive Touch Screen
View area ratio: 16:9
Multi-touch: Up to 10 Point
Type: Capacitive
R-angle: 4*R15
Light Transmittance: >90%
Surface Hardness: 6H tempered glass
Operating Humidity: 45-85%RH
Operating temperature: -10℃-60℃
Storage temperature: -10℃-60℃
Organization: Cover Glass+LOCA+ITO Glass GFF
Connection type: COB
Interface type: USB, IIC, R232, FFC, Dupont line
Operation System: Windows/Android/Linux/IOS/Mac
Compatibility: Plug And Play
Resolution: 1920x1080 Pixels
Durability: Scratch-resistant, anti-high temperature, anti-corrosion, anti-shock and long usage life
Applications:
Application:
①Industrial(Industrial Panel PC,Automation Equipment,IOT Applications),
②Medical(Imaging Display System,Ventilator,Robotic Surgery Arm,Patient Monitoring System),
③Banking
④Treadmill,Smart Home,Smart Monitoring System,
⑤Consumer(Self Service Kiosk,Vending Machine,Digital Signage,Meal Ordering System),
⑥Military
⑦Education
⑧HMI
Customization:
Our product customization services for the xinlilai GG GFF Touch Panel include:
Customizable: AR AF AG mirror glass
Customizable: Interface type: USB, IIC, R232, Terminal line, Dupont line
Customizable: Waterproof Touch Oilproof Touch Glove Touch Pen Touch
Customizable: Anti-UV
Customizable: Curved Screen
Customizable: Led type Lcd type Monitor type up to your preference
Customizable: Frame type and size
Customizable: Size
Customizable: Brand LOGO
Customizable: Color
Customize according to your requirement, If you are interested in the touch screen customize,
welcome contact us. We can provide high technology high quality customize service for you.
Support and Services:
Our Touch Panel product comes with comprehensive technical support and services to ensure that our customers have the best experience with our product:
24/7 online technical support
On-site technical support
Product training and consulting services
Customization services to meet specific customer requirements
1 year warranty
Our team of experienced technicians is dedicated to providing prompt and efficient support to help our customers resolve any issues they may encounter with our product.
Packing and Shipping:
Product Packaging:
The Touch Panel will be carefully placed in a protective foam insert.
The foam insert will be placed in a sturdy cardboard box.
The cardboard box will be sealed with packing tape to ensure the product is secure.
Shipping:
The Touch Panel will be shipped via a reputable courier service.
Shipping Method: Decided by the customer.
