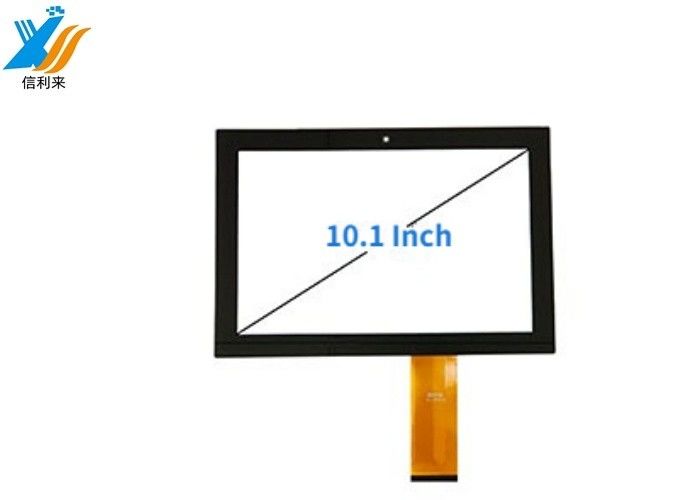

10.1 Inch USB PCAP Touch Panel For Industrial Control All-in-One Computer With High Sensitivity
Product Details:
| Place of Origin: | China |
| Brand Name: | xinlilai |
| Model Number: | 800101-01 |
| Document: | 800101 10.1-inch capacitive...ng.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | $14.5PCS |
| Packaging Details: | Foam card slot+carton |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500000PCS |
|
Detail Information |
|||
| Color: | Black, White | Surface Hardness: | 6H±1 |
|---|---|---|---|
| Click Count Test: | 1 Million Times | Application: | Industrial Control All-in-one PC |
| Size: | 10.1 Inch | Operating Temperature: | -20°C To 70°C |

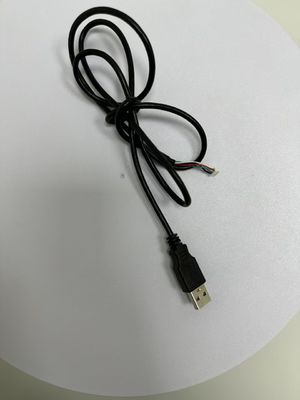

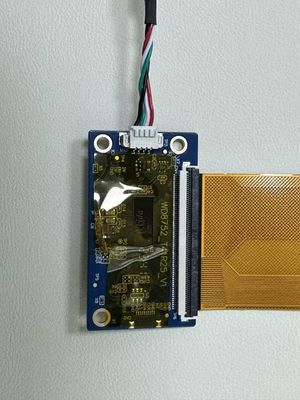

| Interface: | USB | Hardness: | 6H±1 |

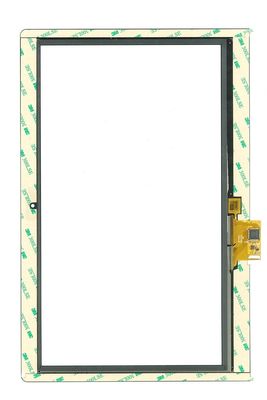

| Structure: | Cover Glass+Loca+ITO Glass | Touch Points: | 10 Points |
| Response Time: | ＜10ms | ||
| Highlight: | 10.1 Inch PCAP Touch Panel,Industrial Control PCAP Touch Panel,High Sensitivity PCAP Touch Panel |
||
Product Description
Product Description:
The stable structure of this 10.1 Inch capacitive panel greatly enhances the user experience of the product, and it adopts a USB interface for easier installation and use. The high hardness of the multi point touch panel extends its service life and can survive tenaciously even in low temperature environments of -20 ℃. The panel has strong sensivity, fast response speed and wide range of applications.
 |
Technical Parameters:
| Brand | xinlilai | Structure | Cover Glass+LOCA+ITO Glass | Model number | 800101-01 |
| Sensor VA | 218.5*136.5mm | Transmittance | ＞85% | Interface | USB |
| Touch Points | 10 points | Click Count Test | 1 million times | Surface Hardness | 6H±1 |
| Cover Glass | 256.49*174.49mm | Operating Humidity | 45~85%RH | Hardness | 6H±1 |
| Operature temperature | -20℃ to70℃ | Color | Black, White | Thickness | 2.0mm±0.15 |
| sensitivity | Light | Response Time | ＜10 ms | Applications | Industrial control all-in-one computer |
| Features | Organization: G+G USB | ||||

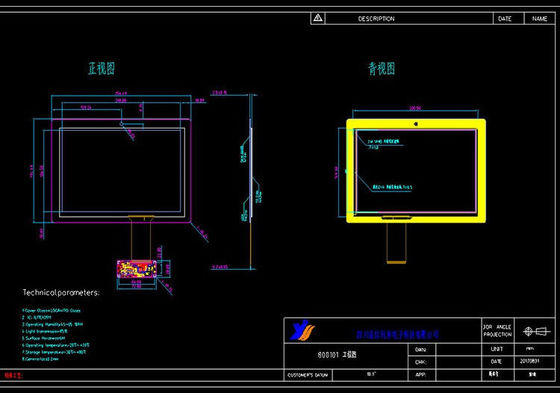

| LENS measurement:256.49*174.49mm±0.3 | |||||
| VA measurement: 218.5*136.5mm | |||||
| Sensor measurement: 230.5*149.3mm±0.3 | |||||
| Customizations | Customizable AR AF AG | ||||
| Interface | |||||
| Waterproof | |||||
| Anti-UV | |||||
|
|
|
Applications:
The PACP touch panel applies in industrial control, medical, commercial and other multiple fields, such as Industrial Panel PC, Automation Equipment and so on.
Typically, there is a camera hole on this usb capacitive touch screen panel, which are suitable for installing cameras. It can be also used in PCAP touch panel monitor.
This touch screen panel can also be customized according to specific requirements and needs.
It is available for OEM/ODM orders and can be tailored to fit different sizes, resolutions, and functionalities. This makes it an ideal choice for businesses and organizations that require a unique and personalized touch screen solution.
-
Packing and Shipping:
- Packaging:
Delivery time: about 15 work days - Packaging High quality: Adequate protection against any potential damage during transportation.
- Packaging materials: Packaged in a sturdy cardboard box, with foam padding and bubble wrap to prevent any scratches or cracks.
- The box will also be marked with fragile labels and handled with care stickers to alert the shipping company and handling personnel of the delicate nature of the product.
Shipping:
- Shipping date:We will ensure that the panel is shipped in a timely manner to meet the delivery date specified by our customers.
- Shipping Method: Use a secure and trackable method, such as air or sea freight, depending on the customer's preference and location.
- Tracking: Provide a tracking number so they can monitor the status of their shipment.
Thank you for choosing our Projected Capacitive Touch Panel. We are committed to providing our customers with the highest quality products and services, and we will do our best to ensure a hassle-free packaging and shipping experience.
