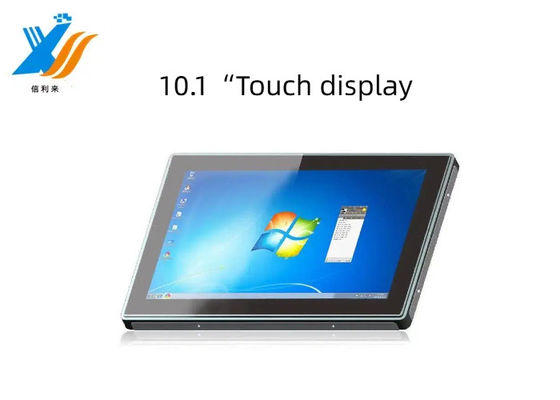

10.1 Inch capacitive LCD Touch Screen panel with high sensitivity G+G structure VGA HDMI customized for tablet pc industrial education
Product Details:
| Place of Origin: | China |
| Brand Name: | xinlilai |
| Model Number: | 10.1" |
| Document: | 10.1“Touch Screen Monirot...ot.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Packaging Details: | Foam card slot + carton |
| Delivery Time: | 15 working days |
| Payment Terms: | TT |
| Supply Ability: | 500000PCS/Month |
|
Detail Information |
|||
| Product Name: | LCD Touch Screen Panel | Organization: | Touch Screen+ LCD Display+ Metal Shell |
|---|---|---|---|
| Touch Panel: | PCAP | Type: | Capacitive |
| IC: | EETI, ILITEK, LG, Goodix, FT, WDT, SIS, NVIDIA, GT, Silead, SIS And So On For Choise | Display Type: | BOE Or Others According To Your Requirement |
| Screen Size: | 10.1 Inch | Interface: | USB VGA HDMI DC, Support To Expand More Interfaces |
| Multi-touch: | Up To 10 Point | Operation System: | Windows/Android/Linux/IOS/Mac |
| Operating Temperature: | -20℃~70℃ | Storage Temperature: | -30℃~80℃ |
| Operating Humidity: | 45~85%RH | ||
| Highlight: | Interactive LCD Touch Screen Panel,10.1 Inches LCD Touch Screen Panel |
||
Product Description
Product Description:
Features:
Product Name: 10.1 Inch LCD Touch Screen Monitor
Driver Ic: EETI, ILITEK, LG, Goodix, FT, WDT, SIS, NVIDIA, GT, Silead, SIS and so on for choise
Response time: <3(ms)
Capacitive Touch Screen
Multi-touch: Up to 10 Point
Type: Capacitive
Light Transmittance: >90%
Surface Hardness: 6H tempered glass
Operating Humidity: 45~85%RH
Operating temperature: -20℃~70℃
Storage temperature: -30℃~80℃
Organization: Cover Glass+LOCA+ITO Glass GFF
Connection type: COB, COF
Interface type: USB, IIC, R232, FFC, Dupont line
Operation System: Windows/Android/Linux/IOS/Mac
Interface: USB VGA HDMI DC, support to expand more interfaces
Compatibility: Plug And Play
Resolution: 1920x1080 Pixels
Durability: Scratch-resistant, anti-high temperature, anti-corrosion, anti-shock and long usage life
Organization: Touch Screen+ LCD Display+ metal shell
Display Type: BOE or others according to requirement
Installation mode: embedded installation, Wall-mounted, External embedded installation, Desktop installation and so on
Technical Parameters:
| Technical Parameters | Values |
|---|---|
| Touch Screen Display Panel | 10.1 Inch |
| Operation System | Windows/Android/Linux/IOS/Mac |
| Response Time | <3ms |
| Touch Panel | PCAP |
| IC | EETI, ILITEK, LG, Goodix, FT, WDT, SIS, NVIDIA, GT, Silead, SIS and so on for choise |
| Display Type | BOE or others according to requirement |
| Resolution | 1280*800 Pixels |
| Brightness | 400cd/m2 |
| Warranty | 1 Year |
| Organization | Touch Screen+ LCD Display+ metal shell |
Applications:
Our touch screen monitor can be applied in:
1, Industrial (Industrial Panel PC, Automation Equipment, IOT Applications, Smart Monitoring System)
2, Medical (Imaging Display System, Ventilator, Robotic Surgery Arm, Patient Monitoring System)
3, Banking, ATMs
4, Treadmill, Smart Home
5, Consumer (Self Service Kiosk, Vending Machine, Digital Signage, Meal Ordering System)
6, Military
7, Education
8, HMI
9, Amusement machines, games, jukeboxes
10, Transportation(Backseat Entertainment, Central Consoles, Public Transportation HMI, Tractor, EV Charging Station) and so on.
Customization:
Our product customization services for the xinlilai Touch Monitor include:
Customizable: AR AF AG mirror glass
Customizable: Interface type: USB, IIC, R232, FFC, Dupont line
Customizable: Waterproof Touch Oilproof Touch Glove Touch Pen Touch
Customizable: Anti-UV
Customizable: Curved Screen
Customizable: LCD type Monitor type up to your preference
Customizable: Frame type and size
Customizable: Size
Customizable: Brand
Customizable: Color
Customizable: interface: USB, VGA, HDMI, DC/12V signal input, support to expand more interfaces.
Customize according to your requirement, If you are interested in the touch screen customize, welcome contact us. We can provide high technology high quality customize service for you.
Support and Services:
Our Touch Panel product comes with comprehensive technical support and services to ensure that our customers have the best experience with our product:
1, 24/7 online technical support
2, On-site technical support
3, Product training and consulting services
4, Customization services to meet specific customer requirements
5, 1 year warranty
Our team of experienced technicians is dedicated to providing prompt and efficient support to help our customers resolve any issues they may encounter with our product.
Packing and Shipping:
Product Packaging:
The Touch Panel will be carefully placed in a protective foam insert.
The foam insert will be placed in a sturdy cardboard box.
The cardboard box will be sealed with packing tape to ensure the product is secure.
Shipping:
The Touch Panel will be shipped via a reputable courier service.
Shipping Method: Decided by the customer
Factory Photo:
