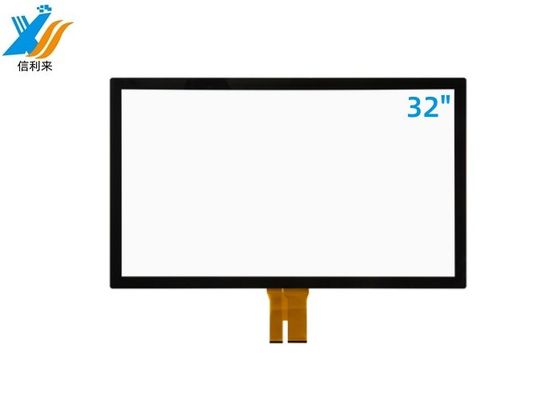

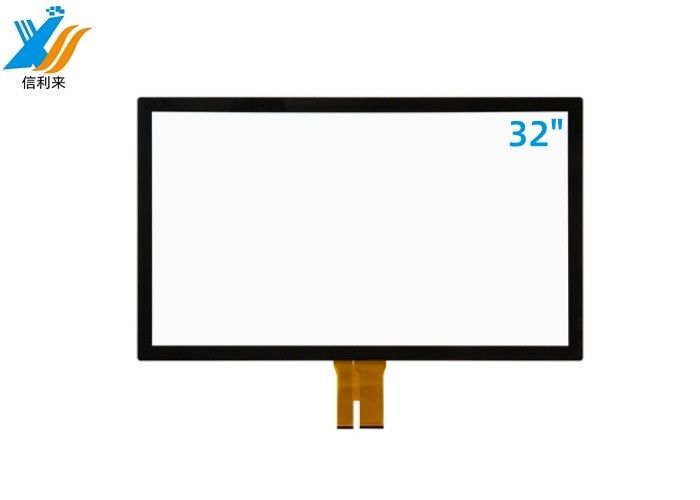

32 Inch GG Touch Screen Panel with oilproof Anti-UV AR AG AF Customized for Industrial Tablet Computer Business education
Product Details:
| Place of Origin: | China |
| Brand Name: | xinlilai |
| Model Number: | XLL-821320 |
| Document: | 821320 32-inch anti-glare...en.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Packaging Details: | Foam card slot + carton |
| Delivery Time: | 15 working days |
| Payment Terms: | TT |
| Supply Ability: | 500000PCS/Month |
|
Detail Information |
|||
| Product Name: | GG Touch Panel | Structurer: | G+ G G+ FF |
|---|---|---|---|
| Product Type: | Capacitive Touch Panel | Size: | 32 Inch |
| IC: | EETI, ILITEK, LG, Goodix And So On | Connection Type: | COB, COF |
| Interface: | USB, IIC, R232, FFC, Dupont Line | Cover Glass OD: | 744.5*446.9mm±0.3 |
| Cover VA: | 698.7*393.3mm±0.3 | Sensor Glass OD: | 720*419mm±0.3 |
| Thickness: | 4.4mm±0.15 | R-angle: | 4*R11 |
| Reflect Time: | <3ms | Color: | Black |
| Operating System: | Win XP/Win 7/Win 8/Win 10/Android/Linux/IOS/Mac | Multi-touch: | 10 Point |
| Operating Temperature: | -20℃~70℃ | Storage Temperature: | -30℃~80℃ |
| Highlight: | 32 inch LCD Capacitive Touch Screen,Customized LCD Capacitive Touch Screen,Multi Touch GG Touch Panel |
||
Product Description
Product Description:

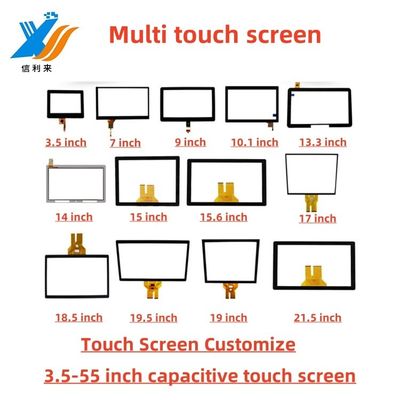

From 3.5-65 inch capacitive touch screen we all have produced. We can produce any size you need. Below is a small part of the sizes we have produced for your reference.
Features:
Product Name: GG Touch Screen Panel
Size:32 Inch

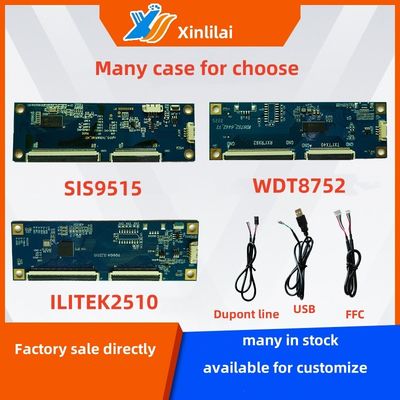

Driver Ic: EETI, ILITEK, LG, Goodix, FT, WDT, SIS, NVIDIA, GT, Silead, SIS and so on for choise
Response time: <3(ms)
Capacitive Touch Screen
Multi-touch: Up to 10 Point
Type: Capacitive
R-angle: 4*R8
Light Transmittance: >90%
Surface Hardness: 6H tempered glass
Operating Humidity: 45~85%RH
Operating temperature: -20℃~70℃
Storage temperature: -30℃~80℃
Organization: Cover Glass+LOCA+ITO Glass GFF
Connection type: COB, COF
Interface type: USB, IIC, R232, FFC, Dupont line
Operation System: Windows/Android/Linux/IOS/Mac
Product Details:
Applications:
Our 32 Inch GG Touch Panel has a variety of excellent qualities, so it can be used in a wide range of applications, including but not limited:
①Industrial(Industrial Panel PC,Automation Equipment,IOT Applications),
②Medical(Imaging Display System,Ventilator,Robotic Surgery Arm,Patient Monitoring System),
③Banking,
④Treadmill,Smart Home,Smart Monitoring System,
⑤Consumer(Self Service Kiosk,Vending Machine,Digital Signage,Meal Ordering System),
⑥Military,
⑦Education,
⑧HMI
Customization:
Our product customization services for the xinlilai GG GFF Touch Panel include:
Customizable: AR AF AG mirror glass
Customizable: Interface type: USB, IIC, R232, FFC, Dupont line
Customizable: Waterproof Touch Oilproof Touch Glove Touch Pen Touch
Customizable: Anti-UV
Customizable: Curved Screen
Customizable: Led type Monitor type up to your preference
Customizable: Frame type and size
Customizable: Size
Customizable: Brand
Customizable: Color
Customize according to your requirement, If you are interested in the touch screen customize,
welcome contact us. We can provide high technology high quality customize service for you.
Packing and Shipping:
Product Packaging:
The Touch Panel will be carefully placed in a protective foam insert.
The foam insert will be placed in a sturdy cardboard box.
The cardboard box will be sealed with packing tape to ensure the product is secure.
Shipping:
The Touch Panel will be shipped via a reputable courier service.
Shipping Method: Decided by the customer
Factory Photo:
