32 Inch Curved Touch Screen Panel Multi touch PCAP touch screen waterproof oilproof Anti-UV customizable industrial commercial medical jukeboxes
Product Details:
| Place of Origin: | China |
| Brand Name: | Xinglilai |
| Model Number: | XLL-32 |
Payment & Shipping Terms:
| Packaging Details: | foam card slot+carton |
|---|---|
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50000 per month |
|
Detail Information |
|||
| Interface: | USB, IIC, R232, FFC, Dupont Line | Shape: | Curved |
|---|---|---|---|
| Color: | Black & White & Customizable | Compatibility: | Multi-device |
| Operating System: | Windows/Android/Linux/IOS/Mac | Transparency (of Light): | >90% |
| Touch Technology: | Capacitive | Organization: | Cover Glass+LOCA+ITO Glass GFF |

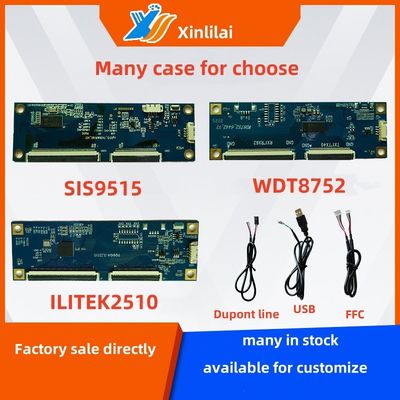

| IC: | EETI, ILITEK, LG, Goodix, FT, WDT, SIS, NVIDIA, GT, Silead, SIS And So On For Choise | Connection Type: | COB, COF |
| Multi-touch: | Up To 10 Point | ||
| Highlight: | 32 Inch Curved Touch Panel,Curved Bendable Touch Panel |
||
Product Description
Product Description:

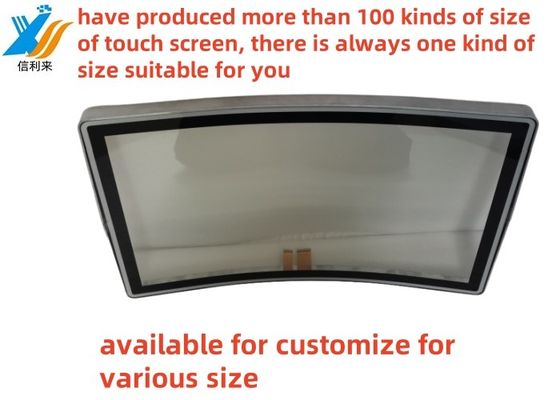

From 3.5-65 inch capacitive touch screen we all have produced. We can produce any size
you need. Below is a small part of the sizes we have produced for your reference.
Features:

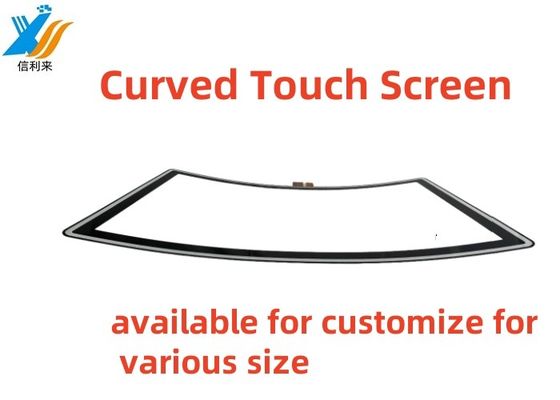

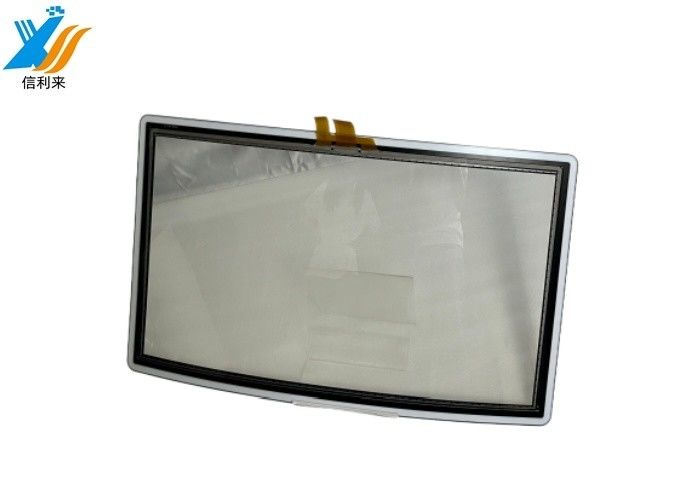

Product Name: Curved Touch Screen
Driver Ic: EETI, ILITEK, LG, Goodix, FT, WDT, SIS, NVIDIA, GT, Silead, SIS and so on for choise
Response time: <3(ms)
Capacitive Touch Screen
View area ratio: 16:9 and 5:4
Multi-touch: Up to 10 Point
Type: Capacitive
R-angle: 4*R8
Light Transmittance: >90%
Surface Hardness: 6H tempered glass
Operating Humidity: 45-85%RH
Operating temperature: -20℃-70℃
Storage temperature: -30℃-80℃
Organization: Cover Glass+LOCA+ITO Glass GFF
Connection type: COB, COF
Interface type: USB, IIC, R232, FFC, Dupont line
Operation System: Windows/Android/Linux/IOS/Mac
Applications:
①Industrial(Industrial Panel PC,Automation Equipment,IOT Applications),
②Medical(Imaging Display System,Ventilator,Robotic Surgery Arm,Patient Monitoring System),
③Banking,
④Treadmill,Smart Home,Smart Monitoring System,
⑤Consumer(Self Service Kiosk,Vending Machine,Digital Signage,Meal Ordering System),
⑥Military,
⑦Education,
⑧HMI
Customization:
Our product customization services for the xinlilai GG GFF Curved Touch Panel include:
Customizable: AR AF AG mirror glass
Customizable: Interface type: USB, IIC, R232, Terminal line, Dupont line
Customizable: Waterproof Touch Oilproof Touch Glove Touch Pen Touch
Customizable: Anti-UV
Customizable: Curved Screen
Customizable: Led type Lcd type Monitor type up to your preference
Customizable: Frame type and size
Customizable: Size
Customizable: Brand
Customizable: Color
Customize according to your requirement, If you are interested in the touch screen customize,
welcome contact us. We can provide high technology high quality customize service for you.
Support and Services:
Our Curved Touch Panel product comes with comprehensive technical support and services to ensure that our customers have the best experience with our product:
24/7 online technical support
On-site technical support
Product training and consulting services
Customization services to meet specific customer requirements
1 year warranty
Our team of experienced technicians is dedicated to providing prompt and efficient support to help our customers resolve any issues they may encounter with our product.
Packing and Shipping:
Product Packaging:
The Curved Touch Panel will be carefully placed in a protective foam insert.
The foam insert will be placed in a sturdy cardboard box.
The cardboard box will be sealed with packing tape to ensure the product is secure.
Shipping:
The Curved Touch Panel will be shipped via a reputable courier service.
Shipping Method: Decided by the customer
A tracking number will be provided to the customer once the product has been shipped.
Factory Photo:
