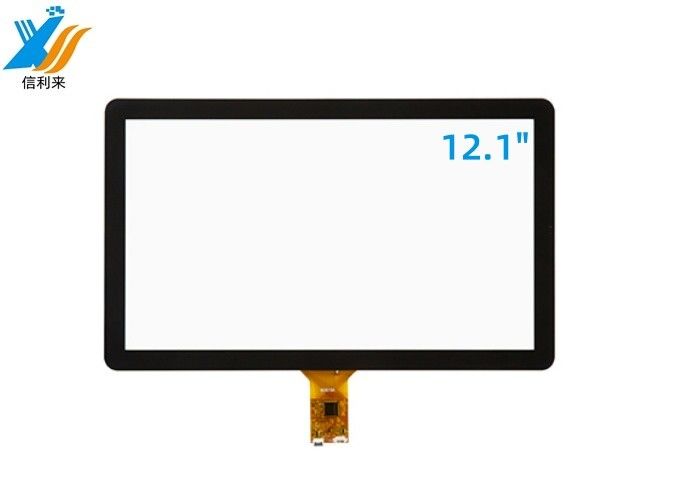

12.1 Inch projected capacitive GG GFF Touch Screen panel waterproof oilproof Anti-UV AR AG AF Customized for commerical medical industrial education
Product Details:
| Place of Origin: | China |
| Brand Name: | Xinlilai |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Packaging Details: | foam card slot+carton |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Per month |
|
Detail Information |
|||
| Prodcut Name: | Touch Screen Panel | Size: | 12.1 Inch |
|---|---|---|---|
| Driver Ic: | EETI, ILITEK, LG, Goodix, FocalTech, WEIDAHI-TECH, NVIDIA, GT, Silead | Type: | Capacitive |
| Multi Touch: | Up To 10 Touch Points | Organization: | GG GFF |
| Connection Type: | COB, COF | Interface Type: | USB, IIC, R232, FFC, Dupont Line |
| Color: | Black | Operating Temperature: | -20℃~70℃ |
| Storage Temperature: | -30℃~80℃ | Operating Humidity: | 45~85%RH |
| Highlight: | High Brightness Touch Screen Panel,3.5-55 Inch Touch Screen Panel,300 Cd/m2 Touch Screen Panel |
||
Product Description
Product Description:
GG Touch Panel is designed with a Glass + Glass structure, which provides enhanced durability and strength. The combination of two layers of glass makes the touch panel resistant to scratches, cracks, and damages, ensuring a longer lifespan and reliable performance.
The LCD Touch Screen Panel boasts a generous screen size of 12.1 Inch, providing ample space for all your on-screen activities. Whether you're watching videos, playing games, or working on documents, the large display ensures a comfortable and immersive viewing experience.
Interface:USB, IIC, Depont line and so on
The GG Touch Panel can connect with USB and IIC at the same time, offering a convenient choice for customers. With this feature, the GG touch panel can apply in many kinds of devices and applications.
The surface of the GG Touch Panel has a hardness of 6H, making it highly resistant to scratches and damages. This ensures that the touch panel remains in top condition even after prolonged use, enhancing its durability and longevity.
Operating System
GG Touch Panel is compatible with multiple operating systems, including Windows, Android, and Linux. This makes it a versatile choice for different electronic devices, providing users with a consistent and smooth touch experience across different platforms.
Features:
Product Name: Touch Screen Panel
Driver Ic: EETI, ILITEK, LG, Goodix, FT, WDT, SIS, NVIDIA, GT, Silead, SIS and so on for choise
Response time: <3(ms)
Capacitive Touch Screen
Multi-touch: Up to 10 Point
Type: Capacitive
Light Transmittance: >85%
Surface Hardness: 6H tempered glass
Operating Humidity: 45~85%RH
Operating temperature: -20℃~70℃
Storage temperature: -30℃~80℃
Organization: Cover Glass+LOCA+ITO Glass GFF
Connection type: COB, COF
Interface type: USB, IIC, R232, FFC, Dupont line
Operation System: Windows/Android/Linux/IOS/Mac
Applications:
①Industrial(Industrial Panel PC,Automation Equipment,IOT Applications),
②Medical(Imaging Display System,Ventilator,Robotic Surgery Arm,Patient Monitoring System),
③Banking,
④Treadmill,Smart Home,Smart Monitoring System,
⑤Consumer(Self Service Kiosk,Vending Machine,Digital Signage,Meal Ordering System),
⑥Military,
⑦Education,
⑧HMI
Customization:
Our product customization services for the xinlilai GG GFF Touch Panel include:
Customizable: AR AF AG mirror glass
Customizable: Interface type: USB, IIC, R232, Terminal line, Dupont line
Customizable: Waterproof Touch Oilproof Touch Glove Touch Pen Touch
Customizable: Anti-UV
Customizable: Curved Screen
Customizable: Led Lcd type Monitor type up to your preference
Customizable: Frame type and size
Customizable: Size
Customizable: Brand
Customizable: Color
Customize according to your requirement, If you are interested in the touch screen customize,
welcome contact us. We can provide high technology high quality customize service for you.
Support and Services:
Our Touch Panel product comes with comprehensive technical support and services to ensure that our customers have the best experience with our product:
1, 24/7 online technical support
2, On-site technical support
3, Product training and consulting services
4, Customization services to meet specific customer requirements
5, 1 year warranty
Our team of experienced technicians is dedicated to providing prompt and efficient support to help our customers resolve any issues they may encounter with our product.
Packing and Shipping:
Product Packaging:
The Touch Panel will be carefully placed in a protective foam insert.
The foam insert will be placed in a sturdy cardboard box.
The cardboard box will be sealed with packing tape to ensure the product is secure.
Shipping:
The Touch Panel will be shipped via a reputable courier service.
Shipping Method: Decided by the customer
Factory Photo:
