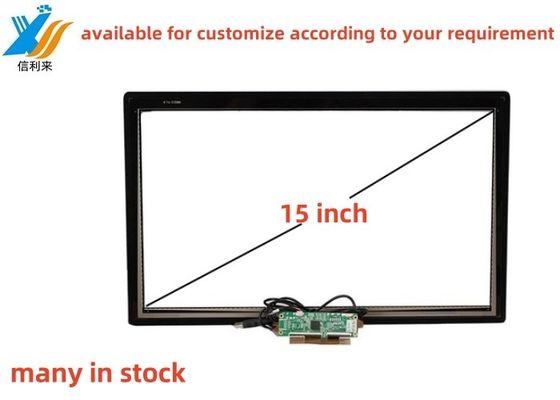

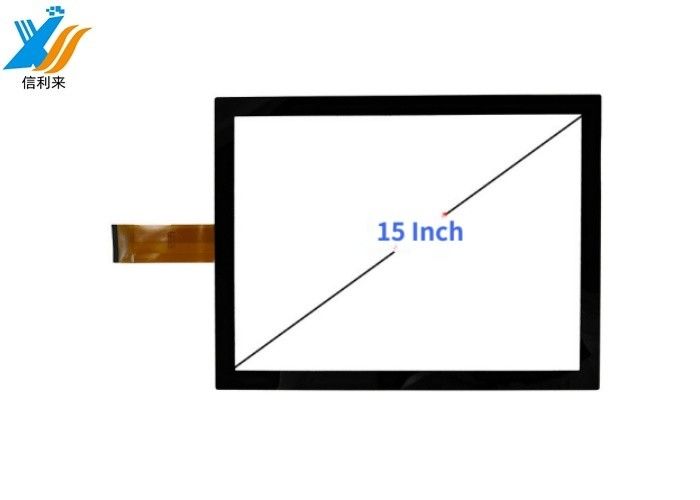

15 Inch Capacitive LCD Touch Screen Panel with USB/IIC Interface Multi Points
Product Details:
| Place of Origin: | China |
| Brand Name: | Xinlilai |
| Document: | 807150 15-inch industrial ...en.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | $19PCS |
| Packaging Details: | Foam card slot+carton |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500000PCS |
|
Detail Information |
|||
| Size: | 15 Inch | Structure: | Cover Glass+LOCA+ITO Glass |
|---|---|---|---|
| Response Time: | 0.3(ms) | Click Times: | 10 Million |
| Interface: | USB | Type: | Capacitive |
| Touch Points: | 10 | Driver Ic: | ILITEK2510 |
| Lens OD: | 346.08*270.02mm±0.2 | Windows: | 305*229.01mm±0.2 |
| Thickness: | 2.0mm±0.15 | Operating Temperature: | -20℃~+70℃ |
| Surface Hardness: | 6H | ||
| Highlight: | USB Touch Screen Panel,Capacitive LCD Touch Screen Panel,IIC Touch Screen Panel |
||
Product Description
Product Description:
The Touch Screen Panel comes with a high-resolution ratio of 1980*1280, which makes it suitable for use in high-definition displays. The high resolution ensures that users can interact with the screen with clarity and precision.
The 15 Inch touch screen panel is made of high-quality glass material that is durable and scratch-resistant, ensuring that it can withstand regular use without losing its touch sensitivity.
The 15 Inch Touch Screen Panel is its high light transmission of over 90%. This means that the screen is highly responsive to touch and displays clear images even in brightly lit environments. The high light transmission also ensures that the screen can be used for extended periods without causing eye fatigue or strain.
The Touch Screen Panel is an ideal solution for various interactive touch screen panel applications. Whether you are looking to create an interactive kiosk, display, or control panel for your business or personal use, the touch screen panel screen is an excellent choice. Its large size options and high-resolution ratio make it suitable for use in public places such as museums, exhibitions, and hospitals, where it can be used to display information and interact with visitors or patients.
In conclusion, the Touch Screen Panel is a high-quality touch screen control panel that offers users an excellent interactive experience. Its high-resolution ratio, durable glass material, and high light transmission make it an ideal choice for various touch screen applications. Whether you need a small or large touch screen panel, the Touch Screen Panel has you covered. With its USB/IIC interface, you can easily connect it to your computer or microcontroller and start enjoying its exceptional touch screen control panel experience.
Features:
- Product Name: Touch Screen Panel
- Light transmission: >90%
- Touch Points: 10
- Click Times: 10 Million
- Response time: 0.3(ms)
- Driver Ic: ILITEK2510
This PCAP Touch panel, also known as a touch screen control panel, features multi-touch capabilities and a fast response time of 3ms. With 10 touch points and a click lifespan of 10 million clicks, it is a reliable and efficient option for various applications. The panel is compatible with different systems, including Android, Windows,Linux and so on.
Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Product Type | Resistive Touch Screen Panel |
| Driver IC | ILITEK2510 |
| Lens OD | 346.08*270.02mm±0.2 |
| Resolution Ratio | 1980*1280 |
| Operating Temperature | -20℃~+70℃ |
| Touch Points | 10 points |
| Response Time | 0.3(ms) |
| Interface | USB |
| Light Transmission | >90% |
| Material | G+G |
| Size | 15 Inch |
| Product Type | Touch-enabled Display Panel |
| Applications | Industrial monitors,Ordering machine and so on. |
Applications:
The Xinlilai 15 Inch touch screen panel is suitable for use in educational settings, such as classrooms and training centers. With multi-touch capability of up to 10 touch points, this multi points touch screen panel can make learning more interactive and engaging. Teachers can use it to display interactive lessons, and students can use it to collaborate on group projects.
With a resolution ratio of 1980*1280, the touch screen panel ensures high-quality display of images and videos. It's suitable for laptop, PC, and Tablets.
The touch screen panel is also ideal for use in offices, allowing for more efficient and collaborative meetings. With multi-touch capability, colleagues can easily work together on projects and presentations without the need for additional equipment. The panel's high resolution and screen size make it easy for everyone in the room to clearly see the content being displayed.
Retail settings, the Xinlilai touch screen panel can be used for advertising and product displays. With its high resolution and multi-touch capability, customers can easily interact with the content being displayed, leading to increased engagement and sales.
The touch screen panel is made of glass, ensuring durability and longevity. The minimum order quantity is 50PCS, and the delivery time is 15 work days. Xinlilai has a supply ability of 500,000PCS, ensuring that customers can get the quantity they need in a timely manner.
Customization:
Xinlilai is a leading brand from China that offers customizable touch screen control panels made from high-quality glass materials. Our touch-sensitive panels are available in sizes ranging from 3.5 inches to 55 inches and can handle up to 10 touch points for a seamless user experience.
Our minimum order quantity is 50PCS and we have a supply ability of 500000PCS, ensuring that we can meet the demands of any business. Our delivery time is 15 work days, ensuring that you get your touch screen control panel in a timely manner.
Our capacitive touch screen control panels come packaged for your convenience and can be customized to your exact specifications. Whether you need a multi-touch panel or a panel with specific dimensions, we can meet your needs.
Packing and Shipping:
Product Packaging:
- 1 Touch Screen Panel
- Protective foam padding
- User manual
Shipping:
- Ships within 15 business days
- Free standard shipping within the US
- International shipping available (additional fees may apply)
