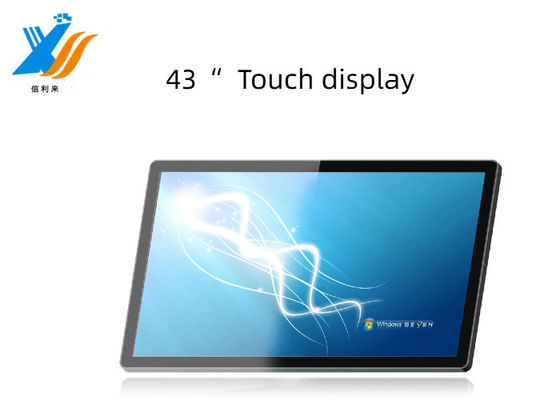

43 Inch 10 Point Capacitive Touch Screen Display USB Interface G+G Structure
Product Details:
| Place of Origin: | China |
| Brand Name: | Xinlilai |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | $97PCS |
| Packaging Details: | Foam card slot+carton |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500000PCS |
|
Detail Information |
|||
| Product Name: | Capacitive Multi Touch Screen | Size: | 43 Inch |
|---|---|---|---|
| Type: | Capacitive | Lens OD: | 1010.4*598.4mm±0.3 |
| Lens VA: | 940.78*528.8mm±0.3 | Sensor OD: | 988*555mm±0.3 |
| Thickness: | 4.3mm±0.15 | Light Transmission: | 85% |
| Surface Hardness: | 6H | Response Time: | 3(ms) |
| Interface: | USB | Operating Temperature: | -20℃~70℃ |
| Storage Temperature: | -30℃~80℃ | Operating Humidity: | 45~85% |
| Click Times: | 10 Million | Touch Points: | 10 |
| Application: | Industrial, Medical Care, Education | ||
| Highlight: | Capacitive Touch Screen Display,10 Point Capacitive Touch Screen Display,300 Nit Capacitive Touch Screen Display |
||
Product Description
Product Description:
Featuring a click life of up to 10 million times, this 43 capacitive multi touch screen panel is built to last and can withstand heavy usage. The multi-touch feature allows for up to 10 touch points simultaneously, making it ideal for multiple-user applications, such as educational or collaborative environments.
The Xinlilai 43 Inch Multi touch screen panel boasts many impressive features, including a light transmission rate of over 85%, making it one of the clearest and most vibrant touch-enabled display panels on the market.
The Multi touch screen panel is equipped with both USB interface, providing flexibility in connection options. The 85 Cd/m² brightness ensures a clear and vivid display, even in low light environments.
Whether you are looking to enhance your digital signage, gaming, or interactive kiosk projects, our touch display panel is the perfect solution. Its innovative design and advanced technology make it a reliable and efficient choice for any touch screen application.
Features:
- Product Name: Multi Touch Screen Panel

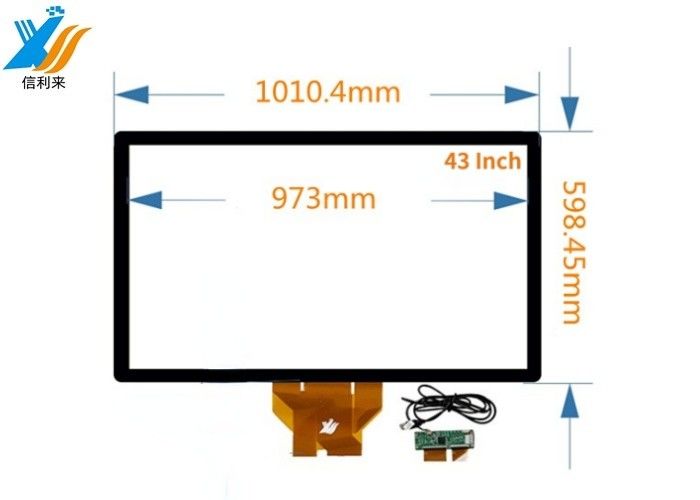

- Lens OD: 1010.4*598.4mm±0.3
- Lens VA: 940.78*528.8mm±0.3
- Sensor OD: 988*555mm±0.3
- Material: Glass
- Brightness: 85 Cd/m²
- Light transmission: >85%

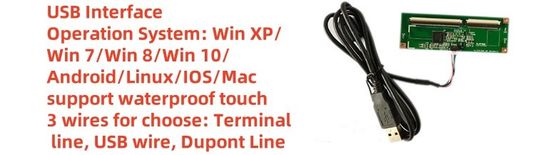

- Interface: USB
- Features:
- Interactive touch screen panel
- Touch panel screen for easy control
- High brightness for clear display
- High light transmission for optimal viewing
Technical Parameters:
| Attribute | Value |
|---|---|
| Brightness | 85 Cd/m² |
| Response time | 3(ms) |
| Driver IC | EETI, ILITEK, LG, Goodix, FocalTech, WEIDAHI-TECH, NVIDIA, GT, Silead |
| Size | 43 Inch |
| Resolution ratio | 1980*1280 |
| Material | Cover Glass+LOCA+ITO Glass |
| Light transmission | >90% |
| Multi Touch | Up To 10 Touch Points |
| Type | Capacitive |
| Interface | USB |
Applications:
With up to 10 touch points, this multi-touch screen panel allows for seamless and intuitive interaction with your device or application. The capacitive touch technology ensures fast and accurate touch response, making it ideal for applications that require precision and responsiveness.
Thanks to its high supply ability of 500,000pcs, the Xinlilai touch screen panel is a reliable and readily available solution for your touch screen needs. It is perfect for a wide range of applications, including:
- Interactive kiosks and digital signage
- Retail point-of-sale systems
- Industrial control systems
- Medical and healthcare devices
- Gaming and entertainment systems
Overall, the Xinlilai 43 Inch touch screen panel is a high-quality and versatile solution for your touch screen needs, offering multi-touch capabilities, capacitive touch technology, and a range of sizes to suit your application. With its reliable supply and fast delivery time, the Xinlilai touch screen panel is the perfect choice for your next project.
Customization:
Packing and Shipping:
Product Packaging:
The Touch Screen Panel product will be packaged securely to ensure safe delivery. It will be packed in a sturdy cardboard box with bubble wrap and foam padding to protect it from any damage during shipping. The package will also include a user manual and any necessary accessories.
Shipping:
The Touch Screen Panel product will be shipped via a reliable courier service to ensure timely and safe delivery. Shipping times will vary depending on the destination, but we will provide a tracking number so that you can monitor the progress of your shipment.
