32" 10-point projected capacitive GG Touch Screen Panel with COB connection Anti-UV AR AG AF customizable for commercial medical inductrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Xinlilai |
| Model Number: | 821320 |
| Document: | 821320 32-inch anti-glare...en.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Packaging Details: | foam card slot+carton |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500000PCS |
|
Detail Information |
|||
| Product Name: | Touch Screen Panel | Type: | Capacitive |
|---|---|---|---|
| Size: | 32 Inch | Organization: | Cover Glass+LOCA+ITO Glass |
| TP Glass: | Tempered Glass | Connection Type: | COB |
| Driver IC: | ILITEK2510 | Interface Type: | USB, IIC, R232, Terminal Line, Dupont Line |
| Lens OD: | 744.5*446.9mm±0.3 | Lens VA: | 698.7*393.3mm±0.3 |
| Thickness: | 4.4mm±0.15 | R-angle: | 4*R11 |
| Sensor: | 720*419mm±0.2 | Response Time: | <3(ms) |
| Multi Touch: | Up To 10 Points | Resolution Ratio: | 1980*1280 |
| View Area Ratio: | 16:9 | Operation System: | Windows/Android/Linux/IOS/Mac |
| Application: | Industrial Machine, Medical Equipment | ||
| Highlight: | Capacitive Multi Touch Touch Screen Panel,Tft LCD Touch Screen Panel |
||
Product Description
Product Description:
Made with precision and care, this 32 Inch Touch Screen Panel is crafted with top-of-the-line materials to ensure durability and reliability. With its G+G organization and COB connection type, this touch screen panel delivers seamless connectivity and efficient performance.

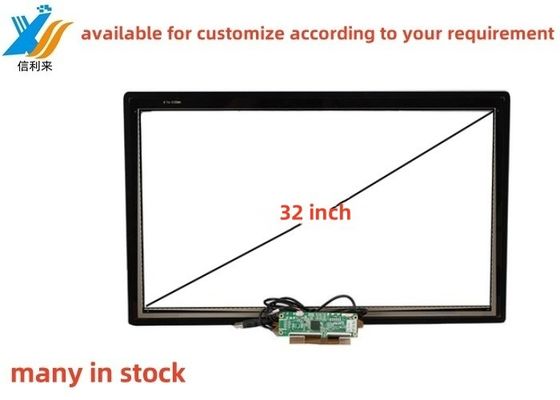

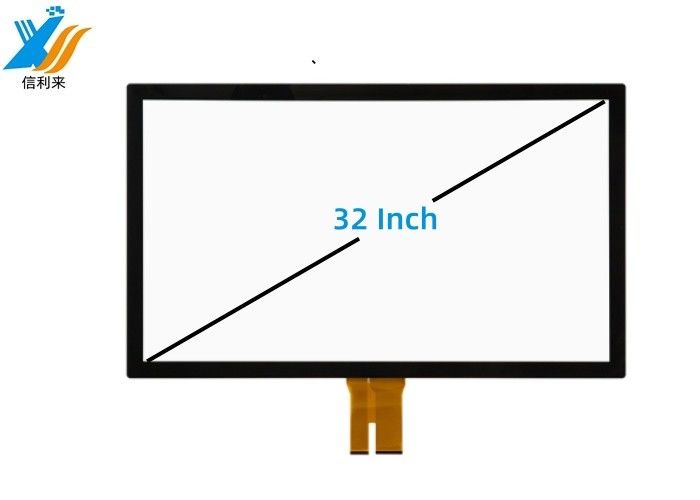

The size of this Multi touch screen panel is 32 Inch, including that the Lens OD is 744.5*446.9mm±0.3, Lens VA is 698.7*393.3mm±0.3, Sensor glass is 720*419mm±0.2,offering a wide active area for using. The total thickness is 4.4mm. And the structure is G+G with tempered glass, ensuring the using lifetime. The R-angles are 4*R11, and also can be customized according to customers'requirements.
The view area ratio of 16:9 is perfect for displaying multimedia content and other digital media. Whether you're using this touch panel screen for work, entertainment, or educational purposes, you can expect nothing but the best from this product.
In addition, the 32 Inch touch screen panel supports USB and IIC interface at the same time with COB connection with a control board, so the Capacitive touch screen panel is also easy to install and use, making it the perfect choice for both professional and personal use. With its advanced technology and innovative features, this touch display panel is sure to take your touchscreen experience to the next level.
So if you're looking for a top-quality touch screen panel that delivers exceptional performance and durability, look no further than this digital touch screen panel. Order yours today and experience the difference for yourself!
Features
Product Name: Touch Screen Panel

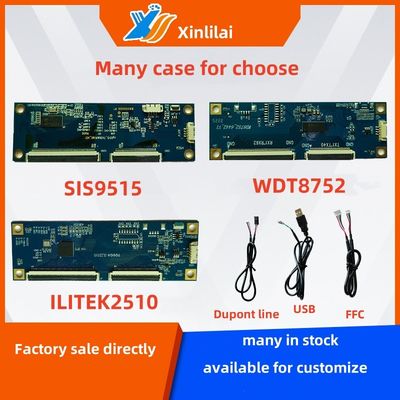

Driver Ic: EETI, ILITEK, LG, Goodix, FT, WDT, SIS, NVIDIA, GT, Silead, SIS and so on for choise
Response time: <3(ms)
Touch Technology: Capacitive Touch Screen
Multi-touch: Up to 10 Point
Type: Capacitive
R-angle: 4*R11
Light Transmittance: >90%
Surface Hardness: 6H tempered glass
Operating Humidity: 45~85%RH
Operating temperature: -20℃~70℃
Storage temperature: -30℃~80℃
Organization: Cover Glass+LOCA+ITO Glass GFF
Connection type: COB, COF
Interface type: USB, IIC, R232, FFC, Dupont line
Operation System: Windows/Android/Linux/IOS/Mac
Applications:
Our 32 Inch touch screen panels can also be used in the healthcare industry, where they can be used to display patient information and allow doctors and nurses to interact with the information.
With 10 points, this Multi Touch Screen Panel can support multiple cooperation. And High sensitivity and fast response It can be used in Game, Office,Eduction, Business Meeting and many other applications.
Other Applications:
①Industrial(Industrial Panel PC,Automation Equipment,IOT Applications),
②Medical(Imaging Display System,Ventilator,Robotic Surgery Arm,Patient Monitoring System),
③Banking,
④Treadmill,Smart Home,Smart Monitoring System,
⑤Consumer(Self Service Kiosk,Vending Machine,Digital Signage,Meal Ordering System),
⑥Military,
⑦Education,
⑧HMI
Customization:
Our product customization services for the xinlilai GG GFF Touch Panel include:
Customizable: AR AF AG mirror glass
Customizable: Interface type: USB, IIC, R232, Terminal line, Dupont line
Customizable: Waterproof Touch Oilproof Touch Glove Touch Pen Touch
Customizable: Anti-UV
Customizable: Curved Screen
Customizable: Led type Lcd type Monitor type up to your preference
Customizable: Frame type and size
Customizable: Size
Customizable: Brand
Customizable: Color
Customize according to your requirement, If you are interested in the touch screen customize,
welcome contact us. We can provide high technology high quality customize service for you.
Support and Services:
Our Touch Panel product comes with comprehensive technical support and services to ensure that our customers have the best experience with our product:
1, 24/7 online technical support
2, On-site technical support
3, Product training and consulting services
4, Customization services to meet specific customer requirements
5, 1 year warranty
Our team of experienced technicians is dedicated to providing prompt and efficient support to help our customers resolve any issues they may encounter with our product.
Packing and Shipping:
Product Packaging:
The Touch Panel will be carefully placed in a protective foam insert.
The foam insert will be placed in a sturdy cardboard box.
The cardboard box will be sealed with packing tape to ensure the product is secure.
Shipping:
The Touch Panel will be shipped via a reputable courier service.
Shipping Method: Decided by the customer
A tracking number will be provided to the customer once the product has been shipped.
