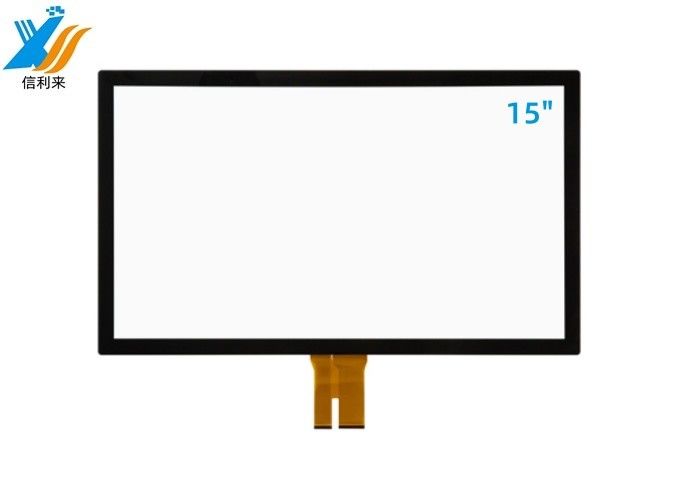

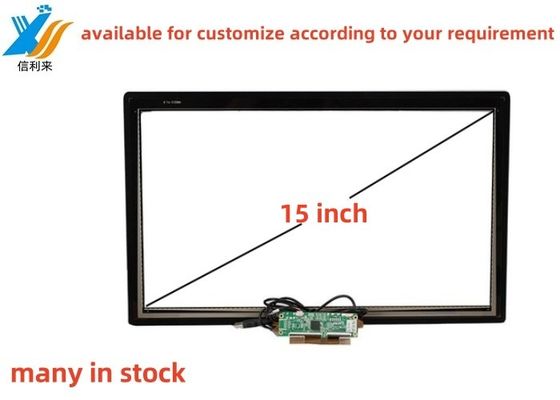

15 Inch G+G Multi touch screen panel with capacitive technology customized waterproof oilproof for ATMs education smart home

Product Description:

The 15 Inch Multi Touch Screen is a product of capacitive advanced technology, which employs IC ILITEK2511. This IC ensure that the device functions smoothly and delivers excellent performance.

The structure of this Multi Touch Screen panel is G+G, which has excellent quality of electricity conduction. The size is 15 Inch, concluding that Lens OD is 346.08*270.02mm±0.2, and Sensor OD is 320.3*246.32mm±0.2, offering a good veiwing and using experience.

The Total thickness is 2.0mm, which is thin and light, so it must be very careful when hold it to install. Four R-angles of this 12.1 Inch Multi Touch Screen are R8, users can customize R-angles if it's not fit.

For ease of use, this Capacitive Touch Screen Panel comes with various interface options such as USB, IIC, R232, Terminal Line, and Dupont Line. These interfaces ensure that the device can be connected to different systems without any compatibility issues.

The Capacitive Touch Screen Panel is an ideal product for applications that require a user-friendly interface. It is widely used in industrial applications, medical equipment, gaming systems, and more. The device delivers excellent accuracy and responsiveness, making it a reliable input device for various applications.

In conclusion, the Capacitive Multi Touch Screen Panel is a valuable component for Industrial All In One PC Touch Screen systems. It is a product of advanced technology that delivers excellent performance and accuracy. The device is compatible with various operating systems and comes with different interface options, making it a versatile product for different applications.

Below is a small part of the sizes we have produced for your reference.

Features:

Product Name: Touch Screen

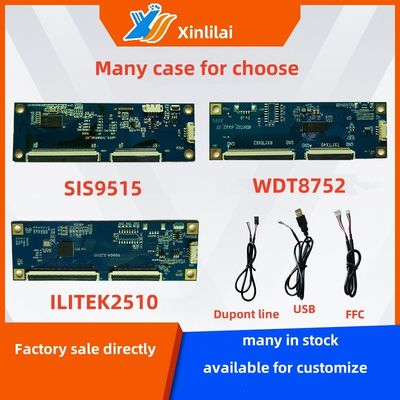

Driver Ic: EETI, ILITEK, LG, Goodix, FT, WDT, SIS, NVIDIA, GT, Silead, SIS and so on for choise

Response time: <3(ms)

Capacitive Touch Screen

Multi-touch: Up to 10 Point

Type: Capacitive

R-angle: 4*R8

Light Transmittance: >90%

Surface Hardness: 6H tempered glass

Operating Humidity: 45-85%RH

Operating temperature: -20℃-70℃

Storage temperature: -30℃-80℃

Organization: Cover Glass+LOCA+ITO Glass    GFF

Connection type: COB, COF

Interface type: USB, IIC, R232, FFC, Dupont line

Operation System: Windows/Android/Linux/IOS/Mac

Interface: USB VGA HDMI DC, support to expand more interfaces

Compatibility: Plug And Play

Resolution: 1920x1080 Pixels

Durability: Scratch-resistant, anti-high temperature, anti-corrosion, anti-shock and long usage life

Organization: Touch Screen+ LCD Display+ metal shell

Display Type: BOE or others according to requirement

Installation mode: embedded installation, Wall-mounted, External embedded installation, Desktop installation and so on

Applications:

The 15 Inch Capacitive Touch Screen Panel is an ideal product for applications that require a user-friendly interface. It is widely used in industrial applications, medical equipment, gaming systems, and more. The device delivers excellent accuracy and responsiveness, making it a reliable input device for various applications.

Our touch screen monitor can be applied in:

1, Industrial (Industrial Panel PC, Automation Equipment, IOT Applications, Smart Monitoring System)

2, Medical (Imaging Display System, Ventilator, Robotic Surgery Arm, Patient Monitoring System)

3, Banking, ATMs

4, Treadmill, Smart Home

5, Consumer (Self Service Kiosk, Vending Machine, Digital Signage, Meal Ordering System)

6, Military

7, Education

8, HMI

9, Amusement machines, games, jukeboxes

10, Transportation(Backseat Entertainment, Central Consoles, Public Transportation HMI, Tractor, EV Charging Station)
and so on.

Customization:

Our product customization services for the xinlilai GG GFF Touch Panel include:

Customizable: AR AF AG mirror glass

Customizable: Interface type: USB, IIC, R232, FFC, Dupont line

Customizable: Waterproof Touch Oilproof Touch Glove Touch Pen Touch

Customizable: Anti-UV

Customizable: Curved Screen

Customizable: Led type Lcd type Monitor type up to your preference

Customizable: Frame type and size

Customizable: Size

Customizable: Brand

Customizable: Color

Customizable: interface: USB, VGA, HDMI, DC signal input, support to expand more interfaces.

Customize according to your requirement, If you are interested in the touch screen customize,

welcome contact us. We can provide high technology high quality customize service for you.

Support and Services:

Our Touch Panel product comes with comprehensive technical support and services to ensure that our customers have the best experience with our product:

1, 24/7 online technical support
2, On-site technical support
3, Product training and consulting services
4, Customization services to meet specific customer requirements
5, 1 year warranty

Our team of experienced technicians is dedicated to providing prompt and efficient support to help our customers resolve any issues they may encounter with our product.

Packing and Shipping:

Product Packaging:

The Curved Touch Panel will be carefully placed in a protective foam insert.
The foam insert will be placed in a sturdy cardboard box.
The cardboard box will be sealed with packing tape to ensure the product is secure.

Shipping:

The Curved Touch Panel will be shipped via a reputable courier service.
Shipping Method: Decided by the customer

A tracking number will be provided to the customer once the product has been shipped.

Factroy Photo:
