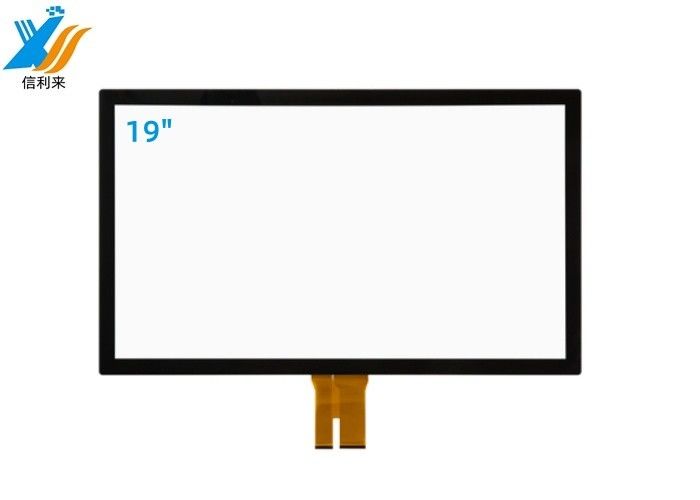

19 inch Multi touch projected capacitive (PCAP) GG GFF ITO touch screen panel waterproof oilproof pen touch glove touch Lcd Display Led Monitor Customizable for education medical industrial smart home
Product Details:
| Place of Origin: | China |
| Brand Name: | xinlilai |
| Model Number: | 807190 |
| Document: | 807190 19-inch industrial ...en.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Packaging Details: | foam card slot+carton |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500000PCS |
|
Detail Information |
|||
| Product Name: | Multi Touch Screen | Type: | Capacitive |
|---|---|---|---|
| Size: | 19 Inch | Organization: | G+G |
| Interface: | USB, IIC | Operating System: | Windows, Android, Linux, Mac |
| Multi-touch: | Up To 10 Point | Connection Type: | COB |
| IC: | ILITEK2510 | Model Number: | 807190 |
| Cover Lens OD: | 395.32*323.56mm±0.2 | Cover Lens VA: | 377.32*300.56mm±0.2 |
| Sensor: | 392.82*321.76mm±0.2 | Sensor AA: | 379.32*302.56mm±0.2 |
| Thickness: | 2.7mm±0.15 | R-angle: | 4*R1 |
| Color: | Black | Operating Temperature: | -20℃~70℃ |
| Storage Temperature: | -30℃~80℃ | ||
| Highlight: | COF Connection Multi Touch Screen,Customizable Options Multi Touch Screen,Industrial Multi Touch Screen |
||
Product Description
Product Description:
Features:
Product Name: Touch Screen Panel

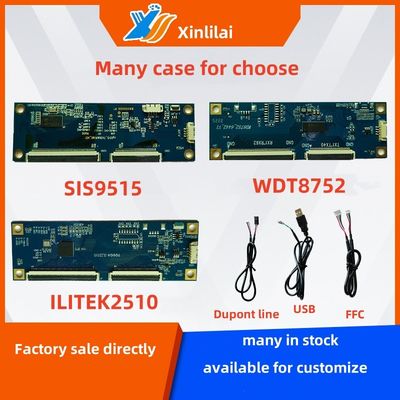

Driver Ic: EETI, ILITEK, LG, Goodix, FT, WDT, SIS, NVIDIA, GT, Silead, SIS and so on for choise
Response time: <3(ms)
Capacitive Touch Screen
Multi-touch: Up to 10 Point
Type: Capacitive
R-angle: 4*R8
Light Transmittance: >90%
Surface Hardness: 6H tempered glass
Operating Humidity: 45-85%RH
Operating temperature: -20℃-70℃
Storage temperature: -30℃-80℃
Organization: Cover Glass+LOCA+ITO Glass GFF
Connection type: COB, COF
Interface type: USB, IIC, R232, FFC, Dupont line
Operation System: Windows/Android/Linux/IOS/Mac
Interface: USB VGA HDMI DC, support to expand more interfaces
Compatibility: Plug And Play
Resolution: 1920x1080 Pixels
Durability: Scratch-resistant, anti-high temperature, anti-corrosion, anti-shock and long usage life
Organization: Touch Screen+ LCD Display+ metal shell
Display Type: BOE or others according to requirement
Installation mode: embedded installation, Wall-mounted, External embedded installation, Desktop installation and so on
Applications:
Application:
①Industrial(Industrial Panel PC,Automation Equipment,IOT Applications),
②Medical(Imaging Display System,Ventilator,Robotic Surgery Arm,Patient Monitoring System),
③Banking,
④Treadmill,Smart Home,Smart Monitoring System,
⑤Consumer(Self Service Kiosk,Vending Machine,Digital Signage,Meal Ordering System),
⑥Military,
⑦Education,
⑧HMI

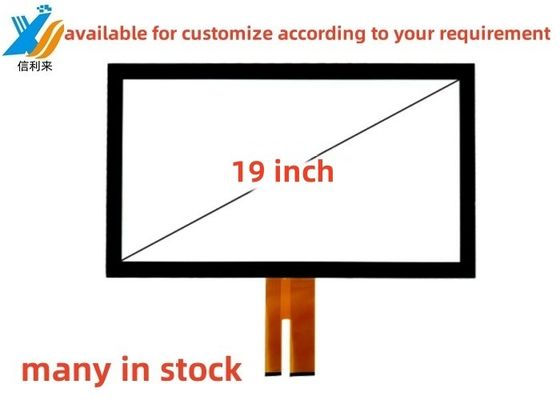

Customization:
Our product customization services for the xinlilai GG GFF Touch Screen include:
Customizable: AR AF AG mirror glass
Customizable: Interface type: USB, IIC, R232, FFC, Dupont line
Customizable: Waterproof Touch Oilproof Touch Glove Touch Pen Touch
Customizable: Anti-UV
Customizable: Curved Screen
Customizable: Led type Lcd type Monitor type up to your preference
Customizable: Frame type and size
Customizable: Size
Customizable: Brand
Customizable: Color
Customizable: interface: USB, VGA, HDMI, DC signal input, support to expand more interfaces.
Customize according to your requirement, If you are interested in the touch screen customize,
welcome contact us. We can provide high technology high quality customize service for you.
Support and Services:
Our Touch Panel product comes with comprehensive technical support and services to ensure that our customers have the best experience with our product:
1, 24/7 online technical support
2, On-site technical support
3, Product training and consulting services
4, Customization services to meet specific customer requirements
5, 1 year warranty
Our team of experienced technicians is dedicated to providing prompt and efficient support to help our customers resolve any issues they may encounter with our product.
Packing and Shipping:
Product Packaging:
The Touch Panel will be carefully placed in a protective foam insert.
The foam insert will be placed in a sturdy cardboard box.
The cardboard box will be sealed with packing tape to ensure the product is secure.
Shipping:
The Touch Panel will be shipped via a reputable courier service.
Shipping Method: Decided by the customer
A tracking number will be provided to the customer once the product has been shipped.
Factory Photo:
