27 Inch 16 9 Capacitive Touch Panel With 10-Point USB Interface
Product Details:
| Place of Origin: | China |
| Brand Name: | xinlilai |
| Model Number: | 800270 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | $45PCS |
| Packaging Details: | Foam card slot+carton |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500000PCS |
|
Detail Information |
|||
| Organization: | Cover Glass+LOCA+ITO Glass GFF | Surface Hardness: | 6H |
|---|---|---|---|
| View Area Ratio: | 16:9 | IC: | EETI, ILITEK, LG, Goodix, FT, WDT, SIS, NVIDIA, GT, Silead, SIS And So On |
| Touch Points: | 10 Points | Light Transmission: | ＞90% |
| Thickness: | 4.3mm±0.15 | Sensor OD: | 614*359mm±0.3 |
| Lens OD: | 667.4*415.4mm±0.3 | Lens VA: | 597.4*335.68mm±0.3 |
| Size: | 27 Inch | Interface: | USB |
| Highlight: | 16 9 Capacitive Touch Panel,10-Point Capacitive Touch Panel,27 Inch Capacitive Touch Panel |
||
Product Description
Product Description:

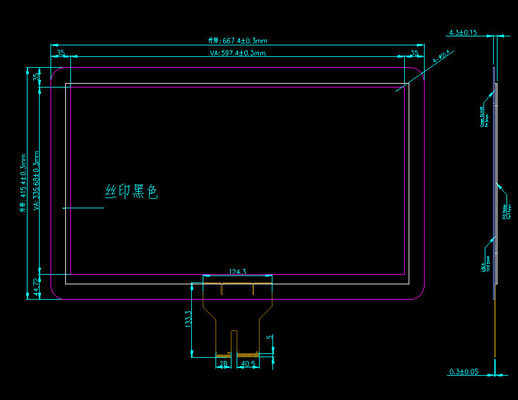

The Cover Glass Size of the 27 Inch PCAP Touch Panel is 667.4*415.4mm±0.3mm, providing ample space for users to navigate through their devices. The thickness of the panel is 4.3mm±0.15, ensuring a sleek and slim design without compromising durability.
The 27 Inch PCAP Touch Panel is compatible with a wide range of ICs such as EETI, ILITEK, LG, Goodix, FT, WDT, SIS, NVIDIA, GT, Silead, SIS And So On. This ensures compatibility with a wide range of devices and systems.
The interface type of the PCAP Touch Panel is USB, providing users with multiple options for connectivity. In addition to USB, the panel also supports R232, Terminal Line, and Dupont Line interfaces.
In conclusion, the PCAP Touch Panel is the perfect solution for those looking for a high-quality touch screen with MuLti Touch Screen technology. Its compatibility with a wide range of ICs and interface types makes it a versatile and reliable product for a variety of devices and systems.
Features:
- Product Name: PCAP Touch Panel
- Thickness: 4.3mm±0.15
- Surface Hardness: 6H
- Operating System: Win XP/Win 7/Win 8/Win 10/Android/Linux/IOS/Mac
- IC: EETI, ILITEK, LG, Goodix, FT, WDT, SIS, NVIDIA, GT, Silead, SIS And So On
- Light transmission: ＞90%
- Features: Touch Screen Panel, USB interface
Technical Parameters:
| Product Name | PCAP Touch Panel |
| Interface Type | USB, IIC, R232, Terminal Line, Dupont Line |
| VA Size | 597.4*335.68mm±0.3mm |
| Light Transmission | >90% |
| Cover Glass Size | 667.4*415.4mm±0.3mm |
| Sensor OD | 614*359mm±0.3 |
| Thickness | 4.3mm±0.15 |
| Screen Size | 27Inch |
| Products Status | New |
| Surface Hardness | 6H |
| Type | Capacitive |
| Application | Touch Screen Panel for Advertising Touch All-in-One Machine |
Applications:
The PCAP Touch Panel product is suitable for various applications and scenarios. It can be used in industries such as gaming, healthcare, transportation, education, and retail.
In gaming, the 27 Inch capacitive touch panel can be applied to gaming consoles, arcade machines, and interactive gaming tables. For healthcare, it can be used in medical devices and equipment, as well as in healthcare information systems. In transportation, it is perfect for touch screen kiosks and ticketing machines.
In education, the 27 Inch capacitive touch panel can be used for interactive whiteboards, digital signage, and kiosks.
In retail, the product is ideal for point of sale systems, self-service kiosks, and vending machines.
The PCAP Touch Panel product is easy to install and operate, making it suitable for various occasions and scenarios. The product has a minimum order quantity of 50PCS with a price of $45PCS, and has a delivery time of 15 work days. Payment terms are via T/T, and supply ability is 500000PCS. As for the connection type, it is available in both COB and COF. The interface type is available in USB, IIC, R232, Terminal Line, and Dupont Line, providing more options for different customers.
Customization:
We offer OEM/ODM services for the PCAP Touch Panel, allowing you to customize the product to your specific needs. Our PCAP Touch Panel has a screen size of 27 inches, VA Size of 597.4*335.68mm±0.3mm, and 10 touch points. The view area ratio is 16:9 and 5:4. We use IC from top brands including EETI, ILITEK, LG, Goodix, FT, WDT, SIS, NVIDIA, GT, Silead, SIS and so on.
Packing and Shipping:
Product Packaging:
- The PCAP Touch Panel will be securely packed in a cardboard box.
- The box will be lined with protective foam to prevent any damage during transportation.
- The touch panel will be placed in a plastic bag to protect it from any scratches or dust.
Shipping:
- The touch panel will be shipped via a trusted courier service.
- The courier service will provide a tracking number to track the package.
- The package will be delivered to the address provided by the customer.
- The delivery time will depend on the shipping option selected by the customer.
